Price:
$11,762
Overview
- Condition: New vehicle
- Manufacturer: Honda
- Model: FOREMAN 520
- Year: 2026
- Stock #: A9761
- Type: ATV (Quad)
- Exterior colour: Red
- Engine Capacity: 518.0 CC
- Cylinders: 1
- Transmission: Automatic
- Drivetrain: 2WD/4WD
- Cooling system: Liquid cooling
- Weight: 637.00 lbs
- Length: 6.90 ft
- Width: 4.00 ft
- Speed: 5
Specifications
- Engine Type: Liquid-cooled longitudinally mounted single-cylinder
- Displacement: 518 cc
- Bore & Stroke: 96.0 mm x 71.5 mm
- Compression Ratio: 9.5 : 1
- Valve Train: OHV, two valves
- Fuel Delivery: PGM-FI electronic fuel injection
- Transmission: Five-speed with automatic clutch, reverse and ultra-low first gear
- Power Steering: Not Available
- Final Drive: 2WD/4WD; direct front and rear driveshafts with switchable 2WD/4WD and torque-sensing/locking front differential
- Front Suspension: Independent Double A-Arm with adjustable hydraulic shocks; 185 mm (7.3 in) travel
- Rear Suspension: Swingarm with single adjustable hydraulic shock; 185 mm (7.3 in) travel
- Tires: Front: 25 x 8-12 Rear: 25 x 10-12
- Brakes: Front: dual 190 mm discs Rear: 160 mm sealed mechanical drum
- Length: 2,106 mm (82.9 in)
- Width: 1,205 mm (47.4 in)
- Ground Clearance: 190 mm (7.5 in)
- Wheelbase: 1,269 mm (50 in)
- Curb Weight: 289 kg (637 lb) including required fluids and full tank of gas—ready to ride
- Fuel Capacity: 14.7 litres, including 4.9 litre reserve
- Rack Capacity: Front rack: 40 kg (88 lb) Rear rack: 80 kg (176 lb)
- Towing Capacity: 385 kg (850 lb)
- Colour: Avenger red
- Warranty: N/A
Notes
Notes:

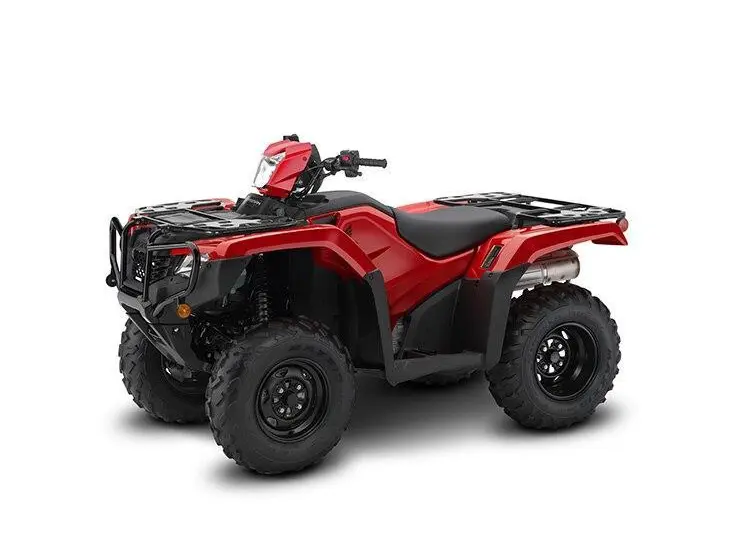

Honda TRX520 Foreman ATVGet through tough jobs and even tougher terrains on the Honda TRX520 Foreman ATV. This workhorse offers you iconic Honda durability and quality. But it’s also an ATV designed to perform – its powerful, liquid- cooled 518 cc engine is longitudinally mounted, allowing direct driveshaft alignment to both the front and rear wheels for serious drivetrain efficiency when it counts.
