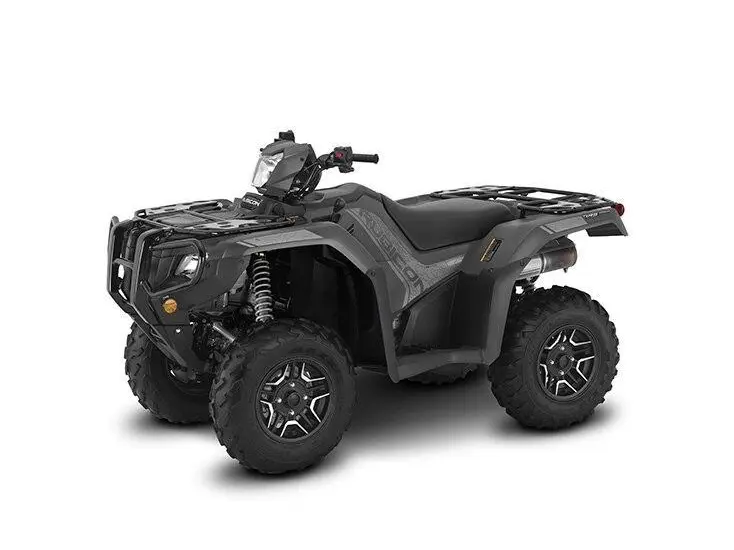

2026 Honda RUBICON 520 IRS EPS

  • ATV
  • Honda
  • ATV (Quad)
Price:
$13,712
$12,962
Payment Calculator
Easy financing Ask for a pre-approval

PRICE INCLUDES $750 REBATE

2026 Honda RUBICON 520 IRS EPS

Overview

  • Condition: New vehicle
  • Manufacturer: Honda
  • Model: RUBICON 520 IRS EPS
  • Year: 2026
  • Stock #: A10156
  • Type: ATV (Quad)
  • Exterior colour: Gray
  • Engine Capacity: 518.0 CC
  • Cylinders: 1
  • Drivetrain: 2WD/4WD
  • Cooling system: Liquid cooling
  • Speed: 5

Specifications

  • Engine Type: Liquid-cooled longitudinally mounted single-cylinder
  • Displacement: 518 cc
  • Bore & Stroke: 96.0 mm x 71.5 mm
  • Compression Ratio: 9.5:1
  • Valve Train: OHV, 2 valves
  • Fuel Delivery: PGM-FI electronic fuel injection
  • Transmission: Fully automatic, five-speed, Dual-Clutch Transmission with selectable Electric Shift Program (ESP), plus dual-range sub-transmission and reverse
  • Power Steering: Standard, Electric Power Steering
  • Final Drive: 2WD/4WD; direct front and rear driveshafts with switchable 2WD/4WD and torque-sensing/locking front differential
  • Front Suspension: Independent Double A-arm with adjustable hydraulic shocks; 185 mm (7.3 in) travel
  • Rear Suspension: Independent Dual Arm (lower A-arm, upper I-arm) with adjustable hydraulic shocks; 215 mm (8.5 in) travel
  • Tires: Front: 25 x 8 - 12 Rear: 25 x 10 - 12
  • Brakes: Front: dual 190 mm discs Rear: 170 mm disc
  • Towing Capacity: 600 kg (1,322 lb)
  • Cargo Capacity: Front rack: 45 kg (99 lb) Rear rack: 85 kg (187 lb)
  • Length: 2,185 mm (86.0 in)
  • Width: 1,205 mm (47.4 in)
  • Ground Clearance: 247 mm (9.7 in)
  • Wheelbase: 1,294 mm (50.9 in)
  • Curb Weight: 326 kg (719 lb) including required fluids and full tank of gas - ready to ride
  • Fuel Capacity: 14.7 litres, including 4.9-litre reserve
  • Colour: Mat Timberwolf Grey Metallic
  • Warranty: 12 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus

Notes

Notes:

TRX520 Rubicon IRS EPS

The Honda TRX520 Rubicon IRS EPS ATV is a tough-as-nails performer built for dependability – whether it’s on the job or dominating trails.

But the Honda Rubicon 520 also offers much more than just iconic Honda durability and quality. This is an ATV designed to perform – its powerful, liquid-cooled 518 cc engine is longitudinally mounted, allowing direct driveshaft alignment to both the front and rear wheels for drivetrain efficiency when it counts.
