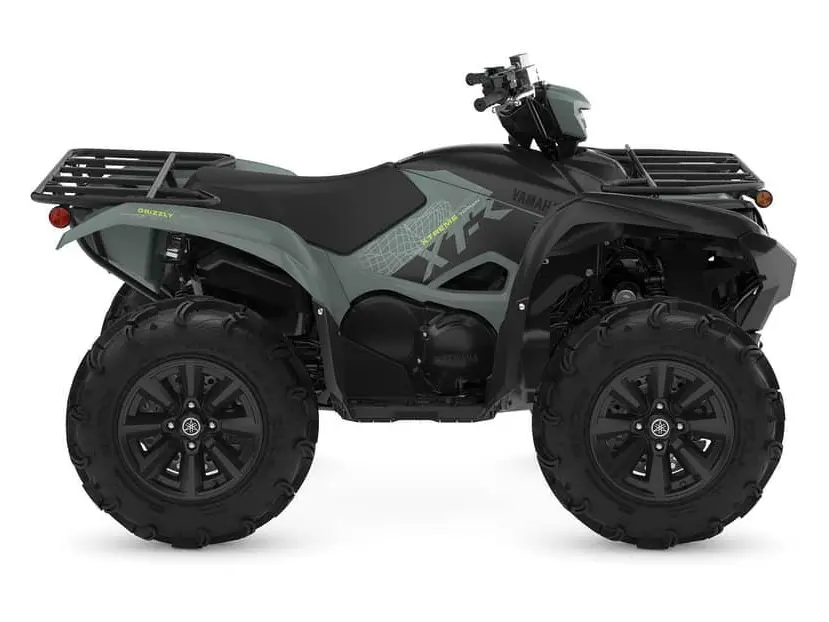

2026 Yamaha GRIZZLY EPS XT-R

  • ATV
  • Yamaha
  • ATV (Quad)
Price:
$16,374
Payment Calculator
Easy financing Ask for a pre-approval
2026 Yamaha GRIZZLY EPS XT-R

Overview

  • Condition: New vehicle
  • Manufacturer: Yamaha
  • Model: GRIZZLY EPS XT-R
  • Year: 2026
  • Stock #: A9780
  • Type: ATV (Quad)
  • Exterior colour: Black
  • Engine: 4 stroke
  • Engine Capacity: 686.0 CC
  • Transmission: CVT
  • Drivetrain: 2WD/4WD
  • Cooling system: Liquid cooling
  • Weight: 754.00 lbs
  • Speed: P / R / N / H / L

Specifications

  • Engine: Liquid-cooled, SOHC 4-stroke
  • Displacement: 686cc
  • Bore and Stroke: 102 mm x 84 mm
  • Compression Ratio: 10 : 1
  • Fuel Delivery: Yamaha Fuel Injection (YFI), 44 mm
  • Ignition: TCI
  • Starting: Electric
  • Lubrication: Wet sump
  • Transmission: Ultramatic V-belt with all-wheel engine braking; H, L, N, R, P
  • Final Drive: On-Command 3-way locking differential; 2WD, 4WD, locked 4WD; shaft
  • Suspension (Front): Independent double wishbone; 5-way preload adjustment / 193 mm (7.6") of wheel travel
  • Suspension (Rear): Adjustable independent double wishbone with anti-sway bar; 5-way preload adjustment / 232 mm (9.1") of wheel travel
  • Brakes (Front): Dual hydraulic disc
  • Brakes (Rear): Dual hydraulic disc
  • Tires (Front): Maxxis® ZILLA® MU01 27 x 10-14
  • Tires (Rear): Maxxis® ZILLA® MU01 27 x 10-14
  • Length: 2070 mm (81.5")
  • Width: 1250 mm (49.2")
  • Height: 1270 mm (50")
  • Wheelbase: 1250 mm (49.2")
  • Maximum Ground Clearance: 300 mm (11.8")
  • Turn Radius: 3708 mm (146")
  • Tread (Front): 1000 mm (39.4")
  • Tread (Rear): 975 mm (38.4")
  • Seat Height: 917 mm (36.1")
  • Wet Weight: 342 kg (754 lb)
  • Fuel Capacity: 18 L
  • Rack Capacity (Front): 50 kg (110 lb)
  • Rack Capacity (Rear): 90 kg (198 lb)
  • Towing Capacity: 600 kg (1,322 lb)
  • Warranty: One year (unlimited mileage) / 10 Year Belt Warranty

Notes

Notes:

ULTIMATE ADVENTURE SEEKER. The Grizzly XT-R further enhances rugged terrain capability and confidence with 27-inch Maxxis® 'Zilla tires, 14-inch aluminum wheels, factory-installed WARN® VRX 25 winch and high-quality painted bodywork.

KEY FEATURES

  • Powerful 686cc engine
  • Speed-sensitive electric power steering (EPS)
  • On-Command® four-wheel drive system
  • High Performance Ultramatic® Transmission
  • Long Travel Shocks with wide-arc A-arms
  • Full-body skid plates
  • 2,500 lb Warn® VRX winch
  • 14-inch aluminum wheels wrapped in 27-inch Maxxis® Zilla tires
  • High-quality painted bodywork
