Overview
- Condition: New vehicle
- Manufacturer: Honda

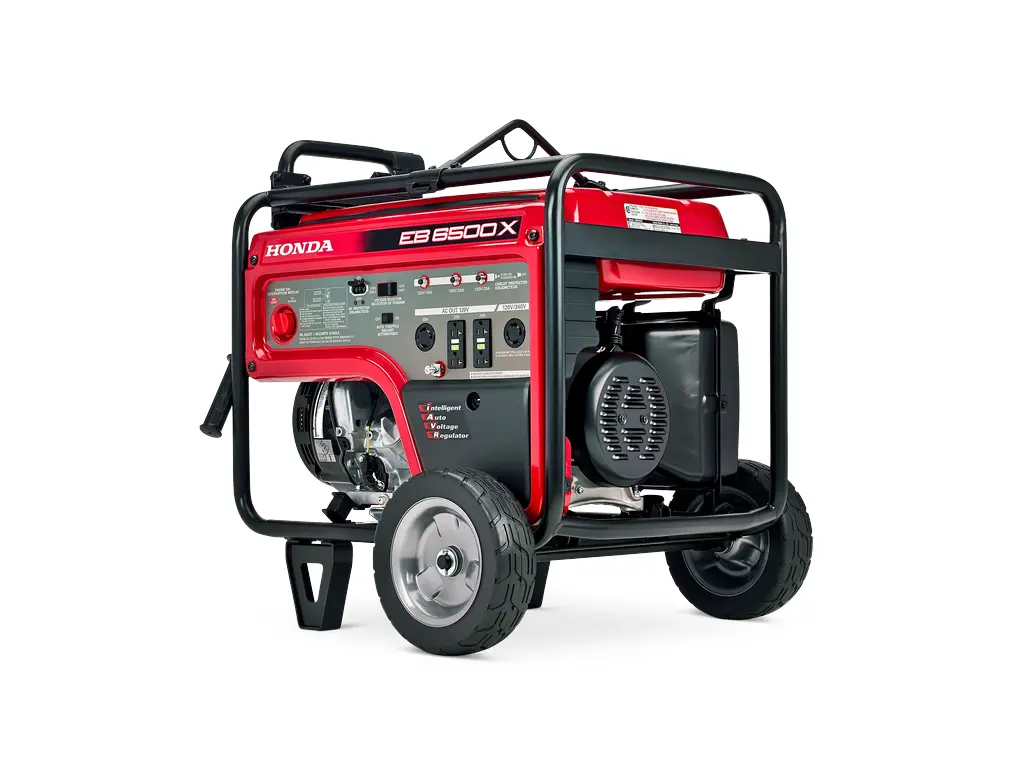

- Model: EB6500XCT2
- Year: 2024
- Stock #: A9287
- Type: Generators
- Exterior colour: Red
Specifications
- Generator Type: Brush type
- Maximum AC Output (Watts): 6,500
- AC Voltage Available: 120 / 240
- Maximum Continuous AC Output (Watts): 5,500 7,000 (iAVR)
- Max. Rated AC Amperage @ 120 V / 240 V: 45.8 / 22.9 (58.3 / 29.2 for 10 sec. iAVR)
- Ground Fault Circuit Interrupter (GFCI): Standard
- Frequency (Hertz): 60
- Automatic Voltage Regulator: Standard iAVR (Intelligent Automatic Voltage Regulator)
- DC Output Volts / Amps: N/A
- Common Duplex Receptacle Specifications: 40 amps/120 VAC continuous is available as combined total from these twin duplex AC receptacles. Maximum of 20 amps available from each GFCI duplex receptacle.
- DC Receptacle Specifications: N/A
- DC Charging Cable: N/A
- High Capacity 120 / 240 VAC Twist Lock Receptacle Specifications: This receptacle will supply 30 amps at 120 VAC continuously. This receptacle will supply 22.9 amps (5.5 kVA) at 240 VAC continuously.
- Engine Type: Honda iGX390T2 OHV, 4-stroke, air-cooled
- Displacement: 389 cc
- Starting System: Manual recoil
- Low Level Oil Alert System: Standard
- Auto Throttle: Standard
- Remote Start Capability: No
- Fuel Tank Capacity: 23.5 litres (5.17 Imp. gal.)
- Transport Wheels: 2 Wheel standard
- Lifting Hook: Standard
- Battery: N/A
- Approximate Running Time (hrs.) / Tankful: 6.9** / 10.4****
- Rated Fuel Consumption (litres/hr): 3.40**
- Noise Level dB(A) (1.5 m to 7 m): 73**
- Length (Without Handles and Wheels): 681 mm (26.8 in.)
- Length (With Handles and Wheels): 1,051 mm (41.4 in.)
- Width (Without Handles and Wheels): 530 mm (20.9 in.)
- Width (With Handles and Wheels): 706 mm (27.8 in.)
- Height (Without Lift-Hook): 719 mm (28.3 in.)
- Height (With Lift-Hook): 773 mm (30.4 in.) standard
- Dry Weight: 97.2 kg (214.3 lbs.)
- Cold Climate Technology: Standard
Notes
Notes:
Highlights
-
AC Voltage Available: 120/240
-
Approximate Running Time (hrs)/Tankful: 6.9/10.4*
-
Cold Climate Technology™: Standard
-
Dry Weight: 97.2 kg (214.3 lbs)
-
Dual voltage power with premium features and GFCI (Ground Fault Circuit Interrupter) protection on duplex receptacles.
-
6,500 watts maximum AC output.
-
Powerful, easy-start Honda iGX390 commercial-grade engine.
-
Auto-throttle further extends running time by automatically adjusting engine speed to idle when under no load.
-
Standard wheel kit with positive lock folding handles for easy transportation and convenient, compact storage.
-
Cold Climate Technology™ aids continuous running in cold weather conditions.
-
Honda exclusive iAVR (Intelligent Auto Voltage Regulation) system for stable power delivery and available extra wattage (7,000 watts for 10 seconds to start larger equipment).
-
Voltage Selector Switch allows both 120 V and 240 V output, or total generator output to be available through any of the 120-volt outlets, limited only by the capacity of the individual outlet for powering devices with larger wattage. requirements.
-
Hanger kit/lifting eye for easier moving around the job site.
